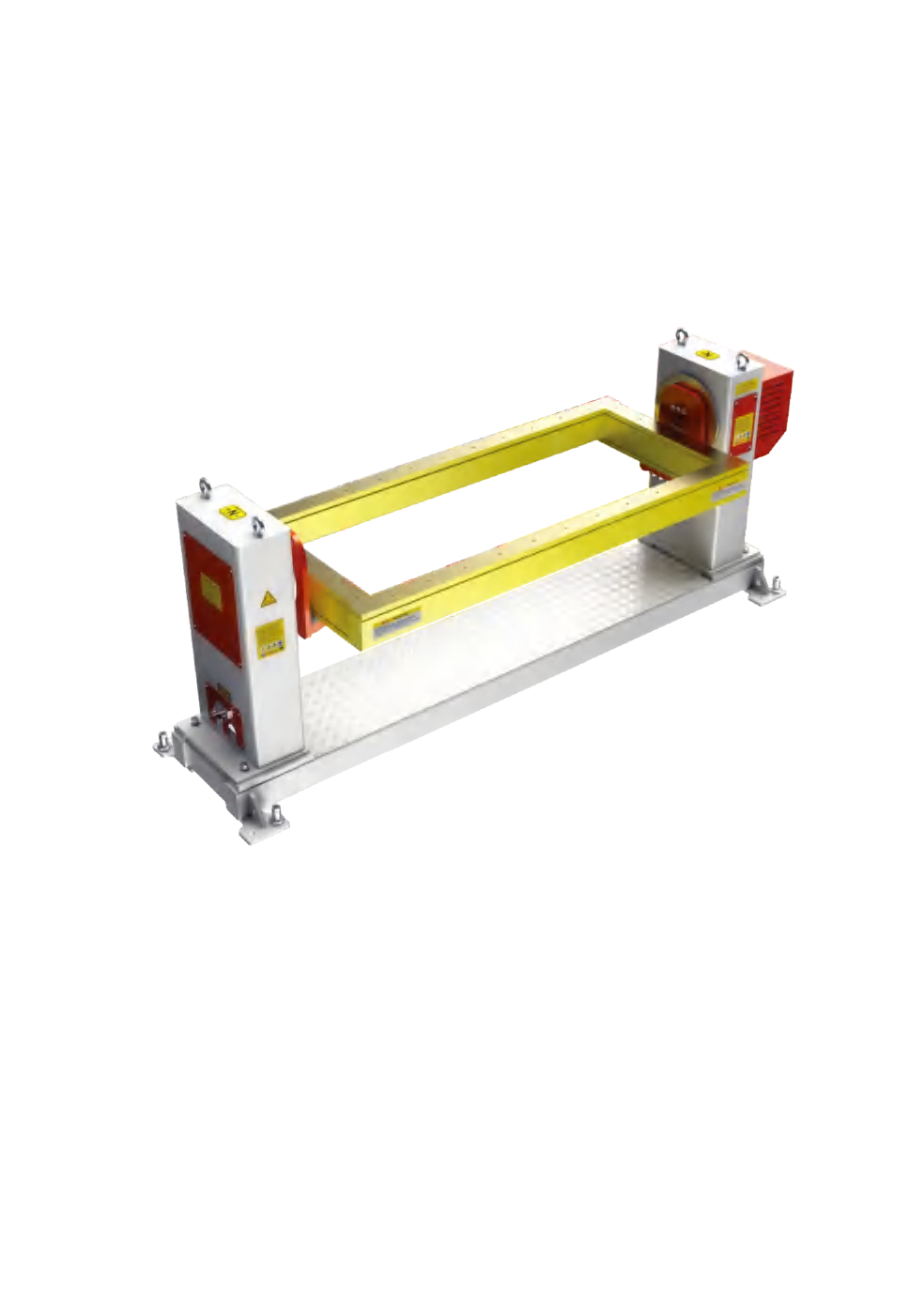

SZGH H-Type Single-Axis Dual-Station Welding Positioner
Single-axis servo positioner with H-frame and two workstations for increased welding arc-on time.
Price on request
Single-Axis Hollow-Shaft PositionerProduct image coming soon.
SZGH · SZGH-POS-1AX-HOLLOW
SZGH Single-Axis Hollow-Shaft Welding Positioner
Single-axis hollow-shaft positioner with direct drive and selectable work disk.
| Axes | 1 |
|---|---|
| Drive | 1 drive / direct drive |
| Rotation | ±360° |
| Repeat positioning accuracy | ±0.02 mm (R500) |
| Work disk | Disc / square plate / frame |
| Welding current conductor | 350 A standard / 500 A option |
| Cable routing | Hollow shaft |
| Gearbox | RV reducer |
Description
SZGH single-axis hollow-shaft positioner is intended for robotic welding and can be used as a synchronized external axis. It provides hollow cable routing and a choice of work disk configurations.
RELATED
Similar products
SZGH

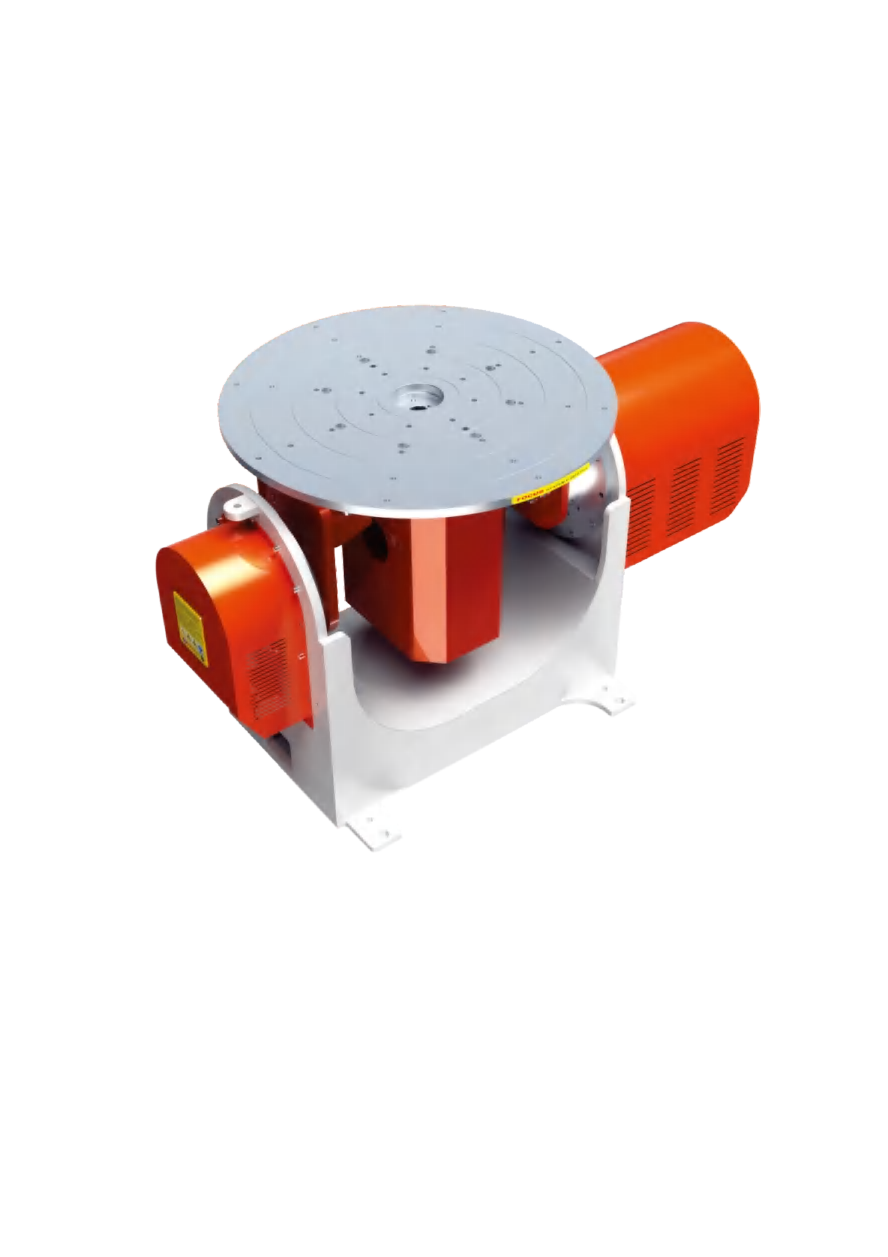

SZGH U-Type Dual-Axis Robotic Welding Positioner
